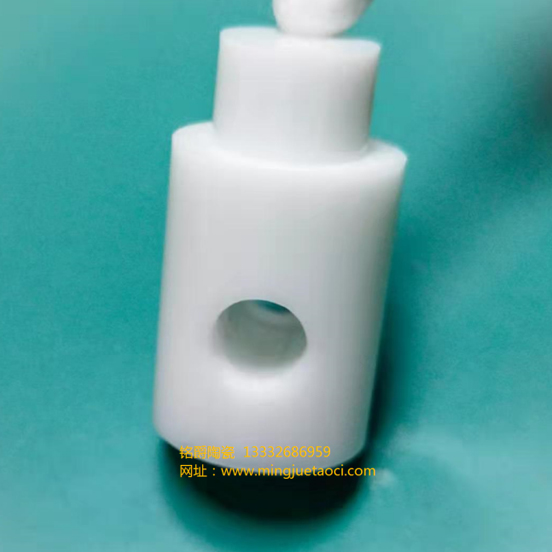

The zirconia ceramic dispensing valve of dispensing machine is composed of air cylinder, valve body and gel outlet. The air cylinder and valve body are separated by diaphragm to avoid glue invading the air chamber.
The valve in the gel outlet body is fixed on the piston rod, and the valve switch is used to open and close the glue. So, why does dispensing machine use ceramic dispensing valve?
Working principle of zirconia ceramic dispensing valve
The compressed air of zirconia ceramic dispensing valve is sent into the rubber bottle (syringe), and the rubber is pressed into the feed pipe connected with the piston chamber. When the piston is in the up stroke, the piston chamber is filled with rubber.
When the piston pushes the rubber dropping needle downward, the rubber is pressed out from the needle mouth. The amount of glue dripping is determined by the distance of piston down stroke, which can be adjusted manually or controlled in software.
Leakage of zirconia ceramic rubber valve
The traditional dispensing valve often leaks, which is caused by the small diameter of the needle. The metal dispensing valve is not resistant to high temperature, easy to paste colloidal liquid, and even affect the action of exhaust bubble. Zirconia ceramic dispensing valve can perfectly solve the problem of glue leakage.

Ceramic dispensing valve produces the least back pressure and the most smooth flow of liquid.
The glue size of zirconia ceramic dispensing valve is inconsistent
When the dispensing valve of zirconia ceramic is inconsistent, it is mainly caused by the unstable pressure of the pressure cylinder or air storing fluid.
The inlet pressure regulator of zirconia ceramic dispensing valve shall be set at 10 to 15 psi lower than the minimum pressure in the factory.
The pressure used for the pressure cylinder shall be higher than the middle of the pressure regulating gauge, and the low pressure part of the pressure gauge shall be avoided.
The control pressure of ceramic dispensing valve is at least 60 psi, which can ensure the stability of dispensing, and the ceramic dispensing valve is resistant to high temperature and corrosion, and will not form the flow blockage of glue liquid.
Zirconia ceramic dispensing valve flow too slow
The velocity of zirconia ceramic dispensing valve is too slow, which is also caused by the material of metal dispensing valve itself.
If the metal temperature is too high, the liquid will stay out of date and agglomerate, thus forming a blockage, and the flow rate will correspondingly slow down, resulting in the inconsistent size of the glue.
The ceramic dispensing valve made of zirconia ceramic can solve this problem perfectly. The zirconia ceramic has the characteristics of wear resistance and high temperature resistance.
Even under the high temperature of 1400C, it can ensure the normal flow of liquid.
The liquid dried up in the valve
This situation is mainly due to excessive moisture or reuse of instant glue. The metal dispensing valve will cause the temperature of the valve body to become cold because of the use environment.
The zirconia ceramic dispensing valve can ensure the constant temperature state, and the liquid will not dry up when flowing through the valve body, so as to ensure the normal flow.
